V Series Rubber Air Springs
Browse the dimensional drawings and reference numbers below. Please provide the required model, dimensions, quantity and destination when requesting a quotation.
Cross-reference numbers are for identification. Please confirm dimensions and vehicle fitment before ordering.

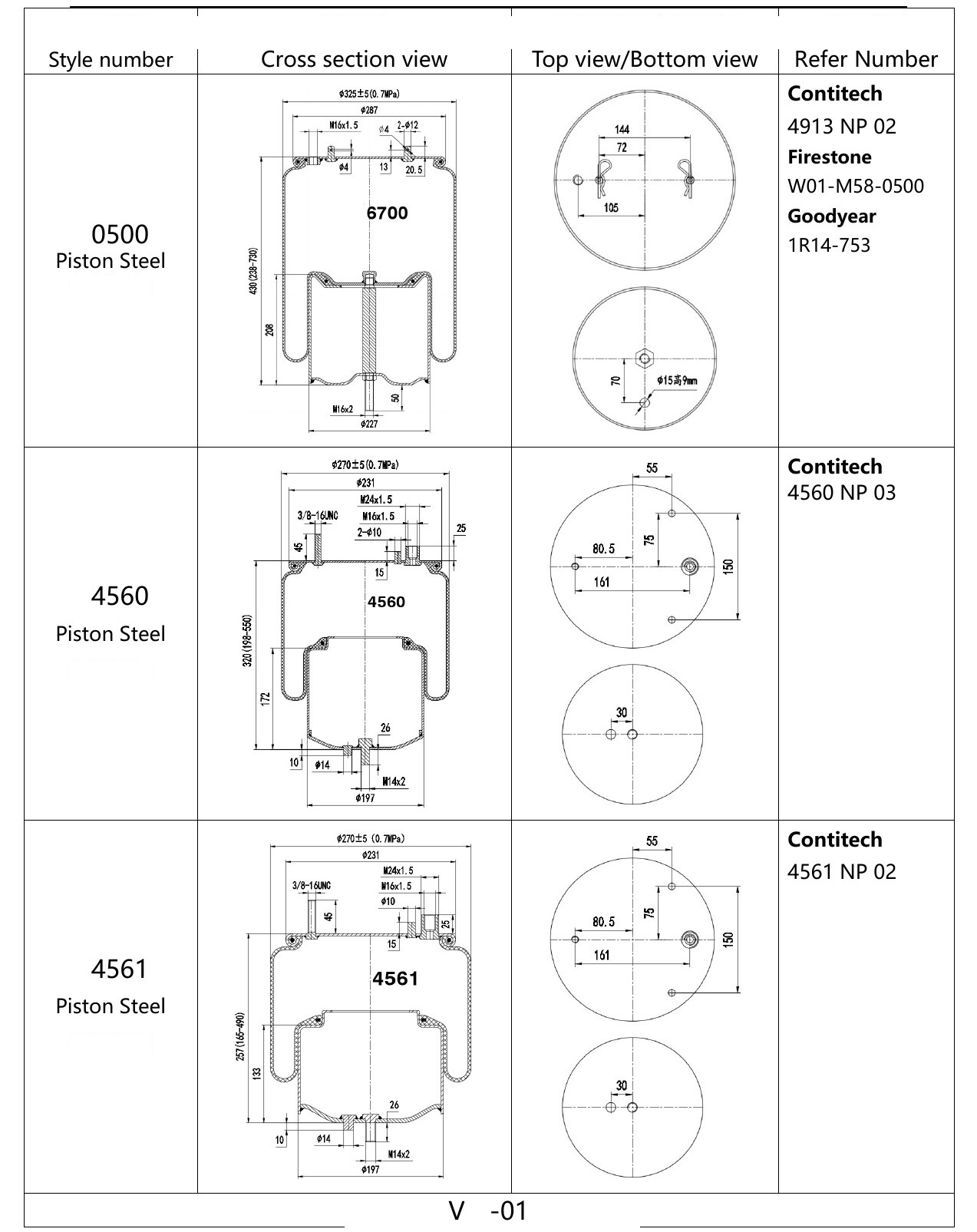

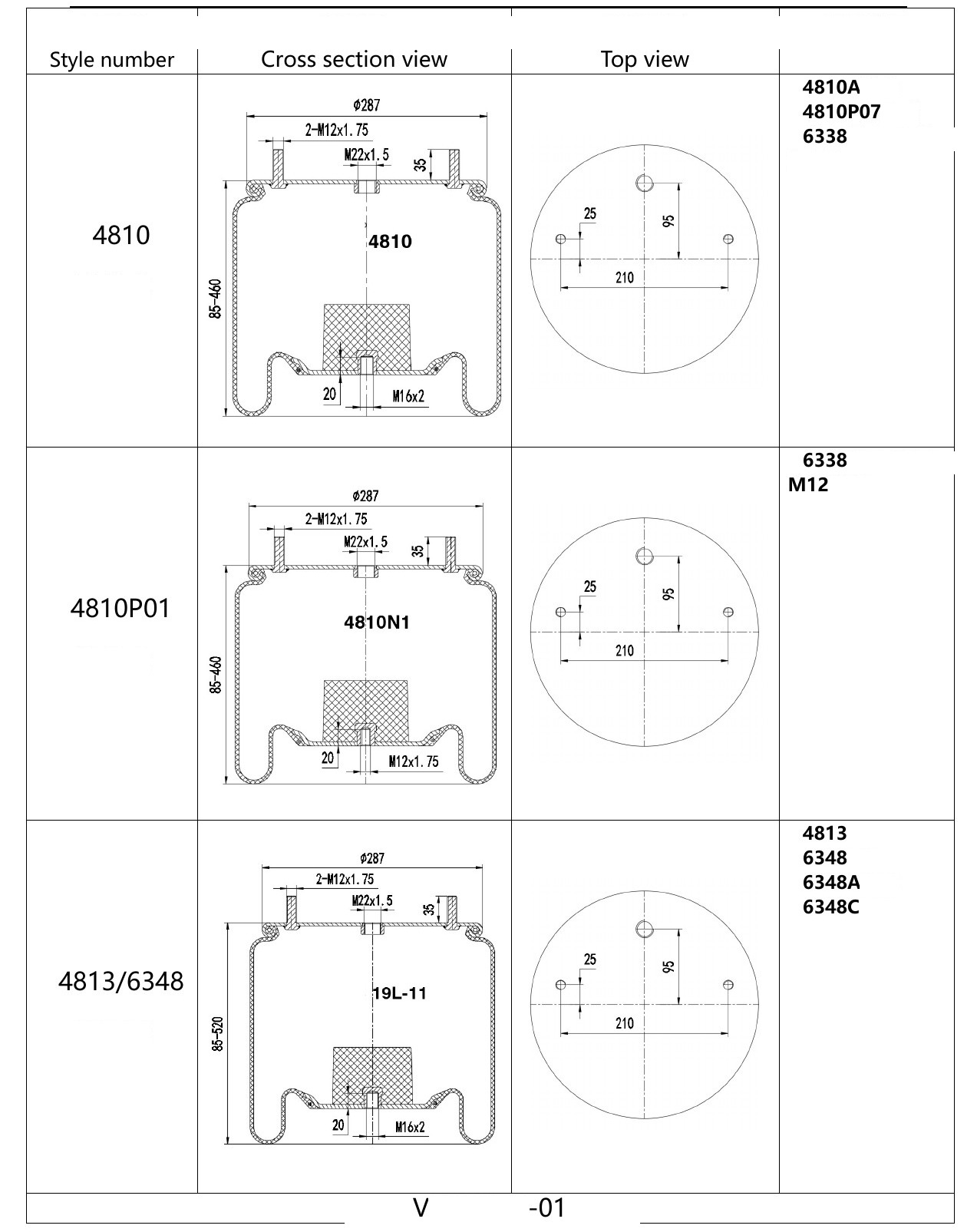

V Series - Drawing Sheet 1

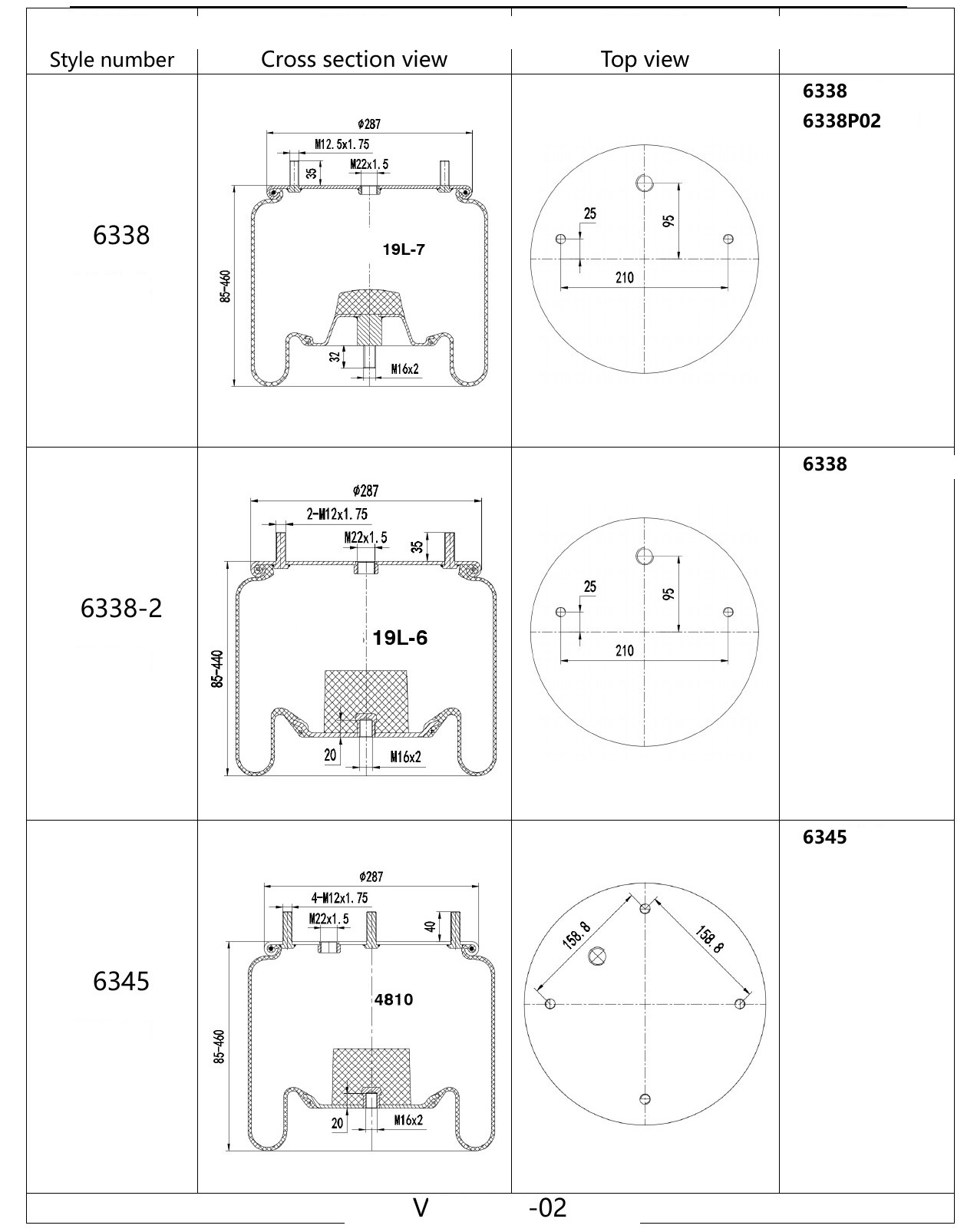

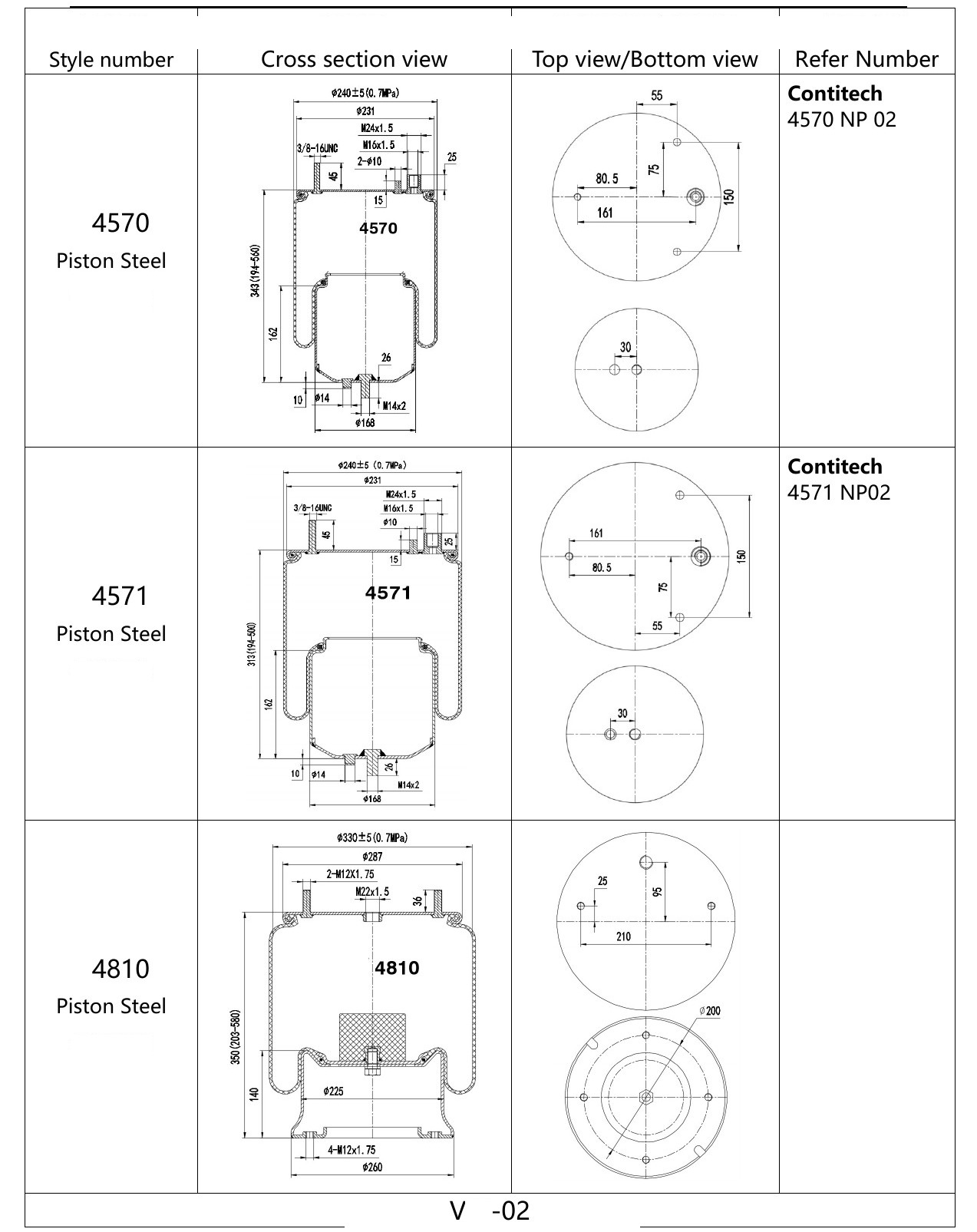

V Series - Drawing Sheet 2

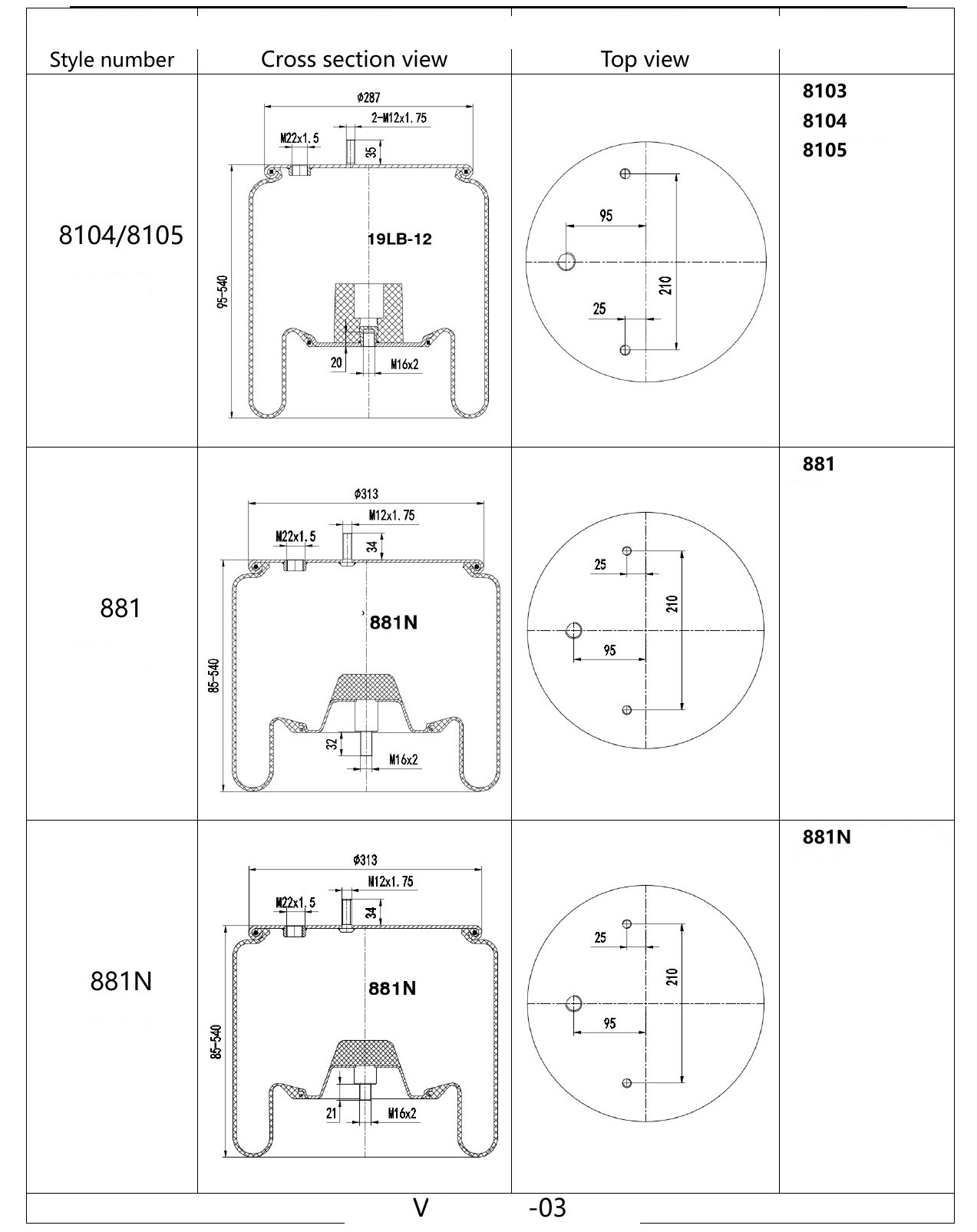

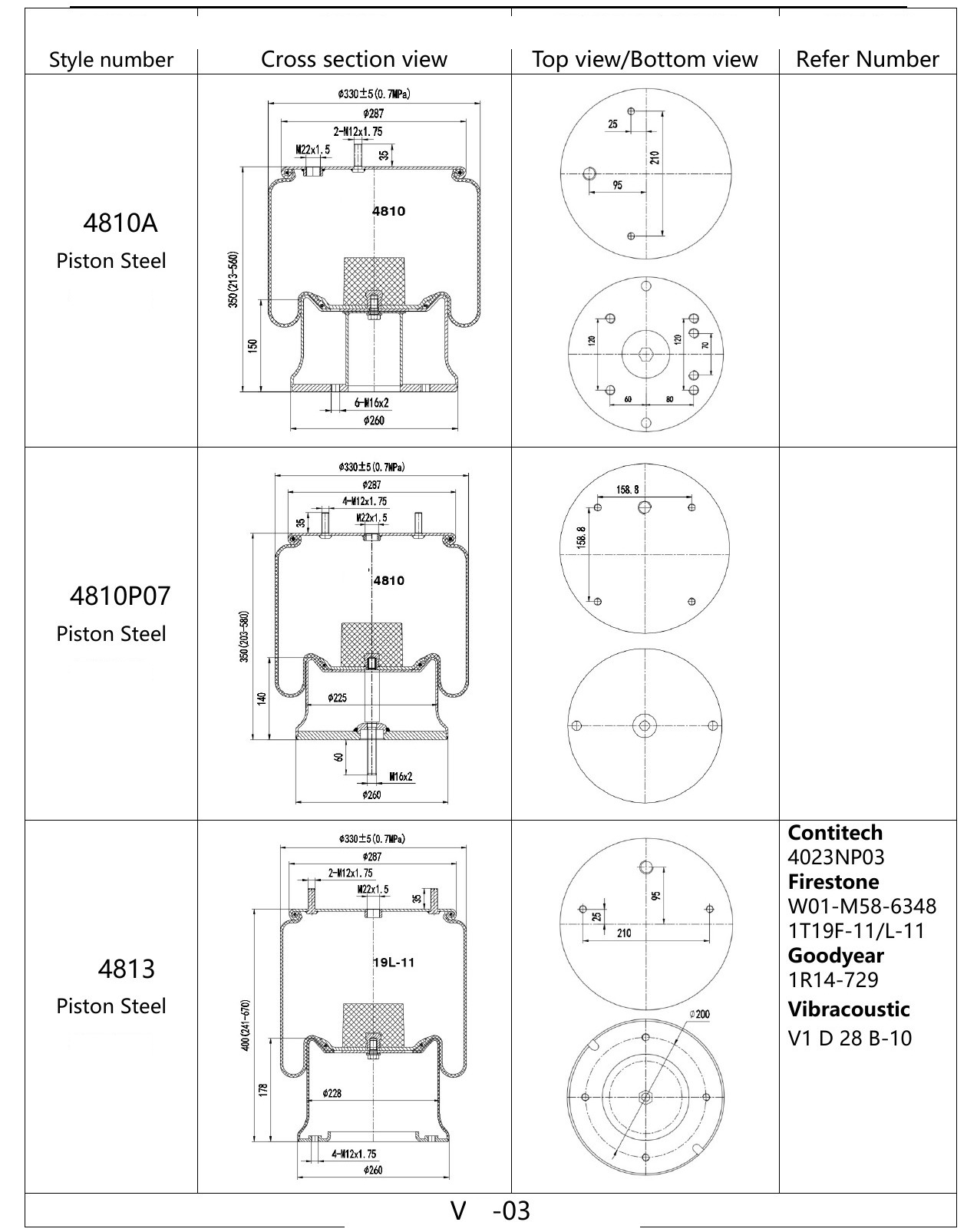

V Series - Drawing Sheet 3
V Series - Drawing Sheet 4

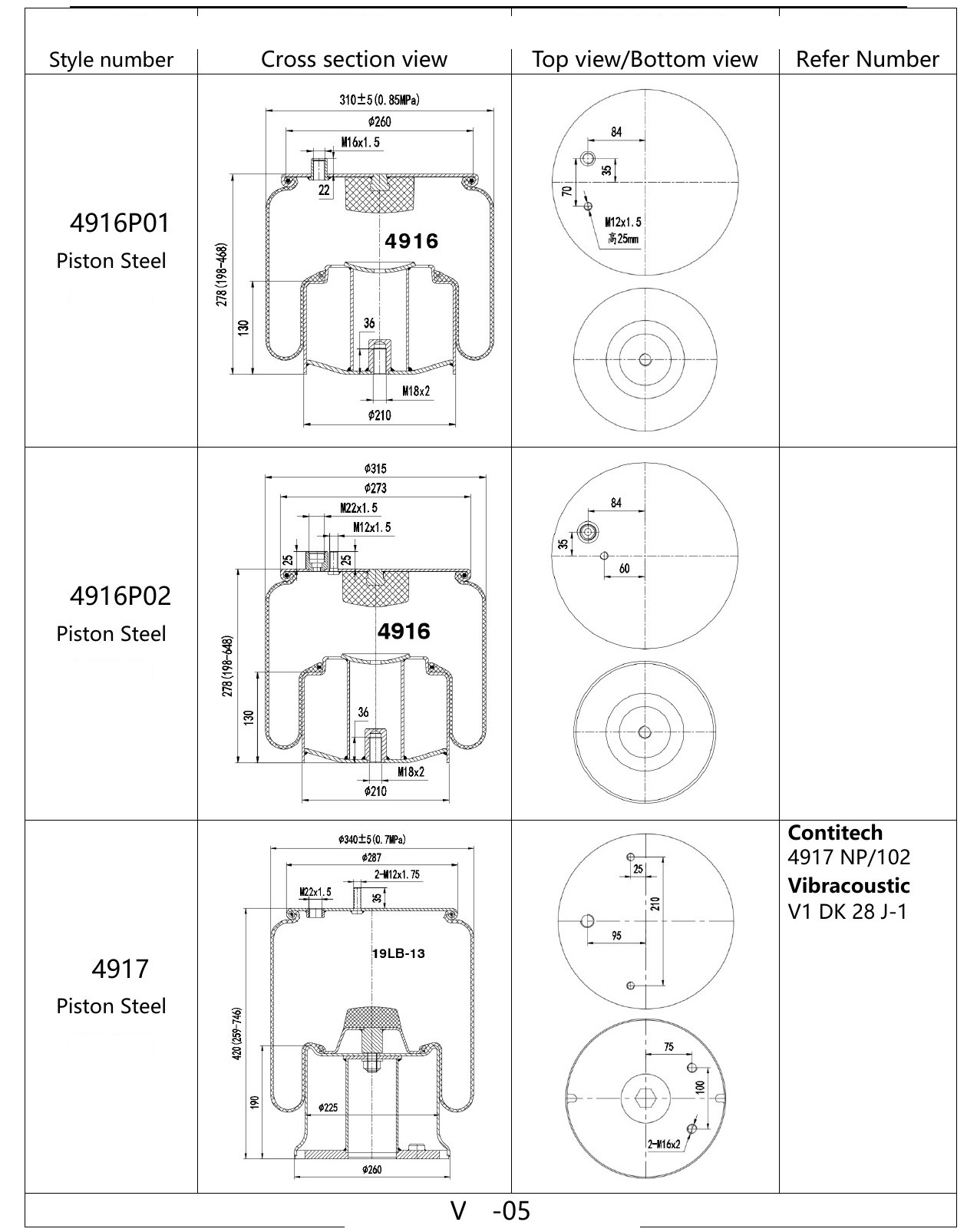

V Series - Drawing Sheet 5

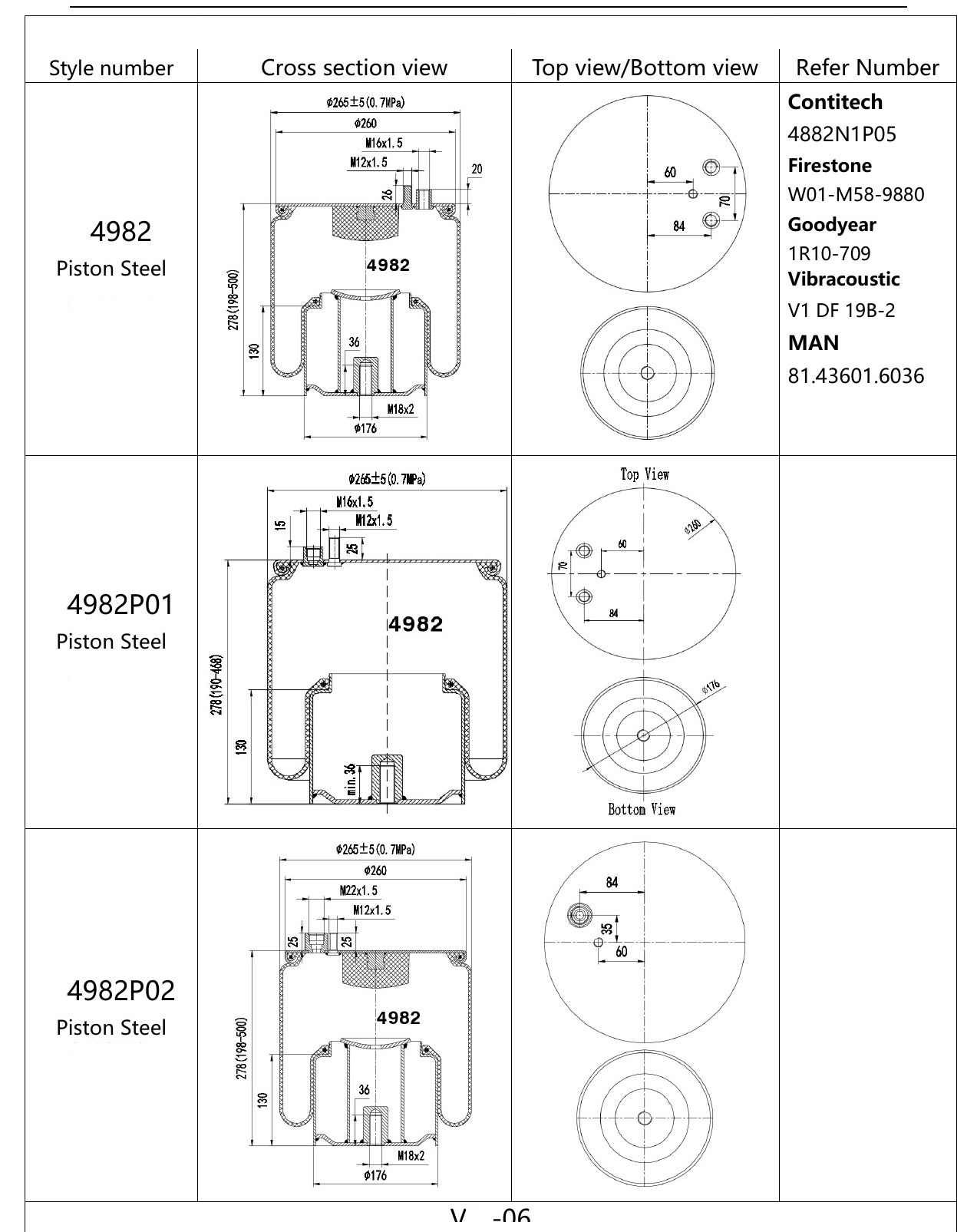

V Series - Drawing Sheet 6

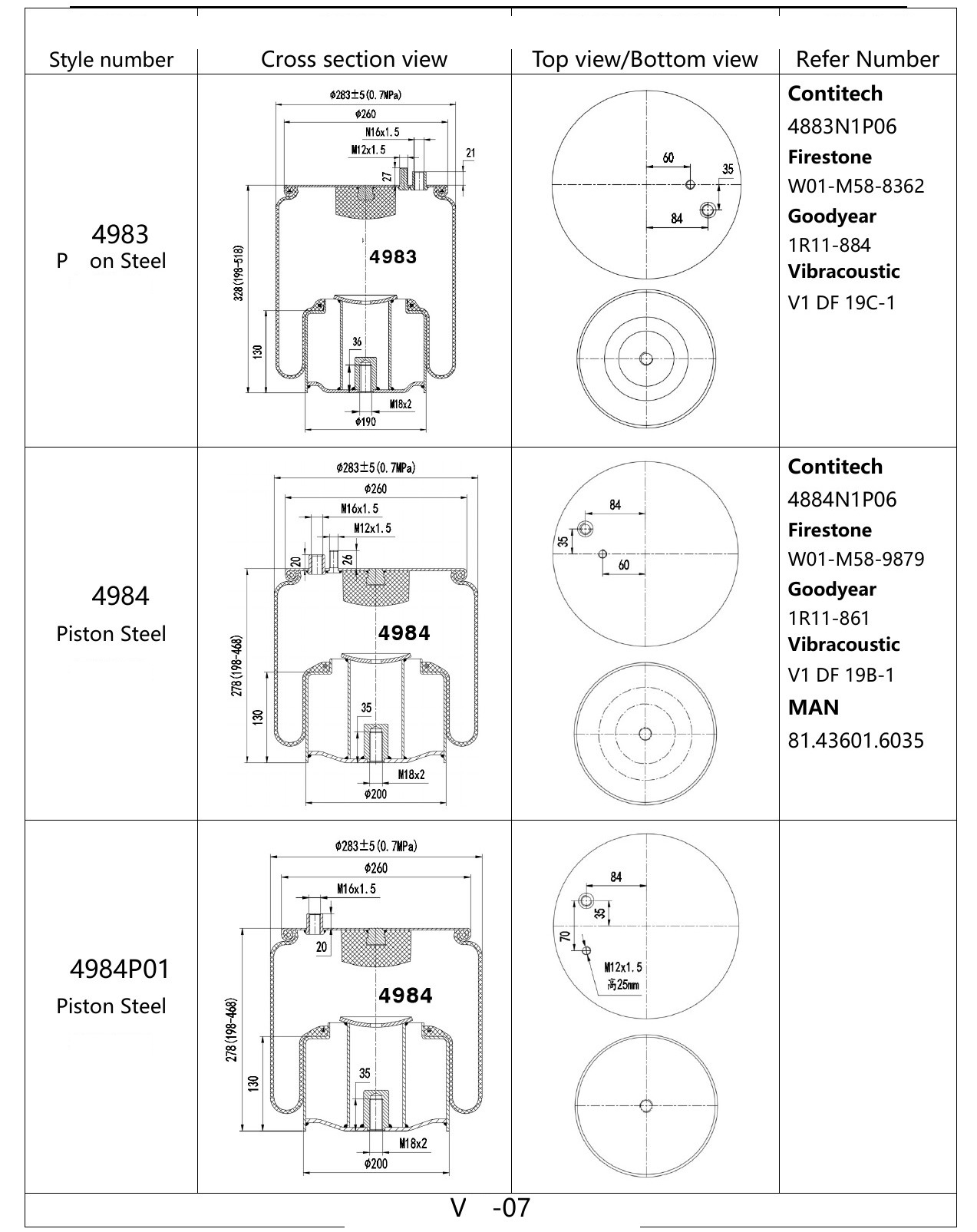

V Series - Drawing Sheet 7

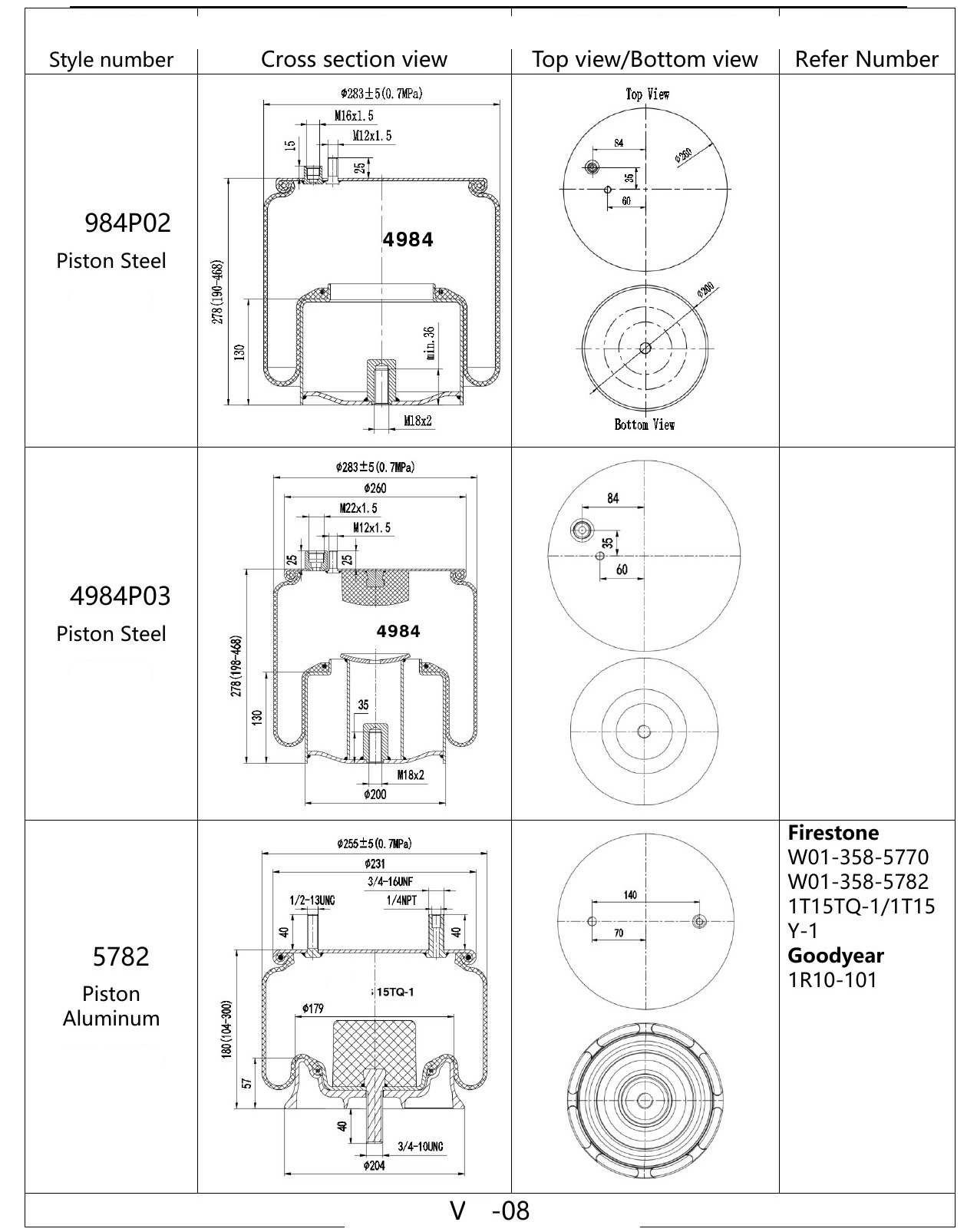

V Series - Drawing Sheet 8

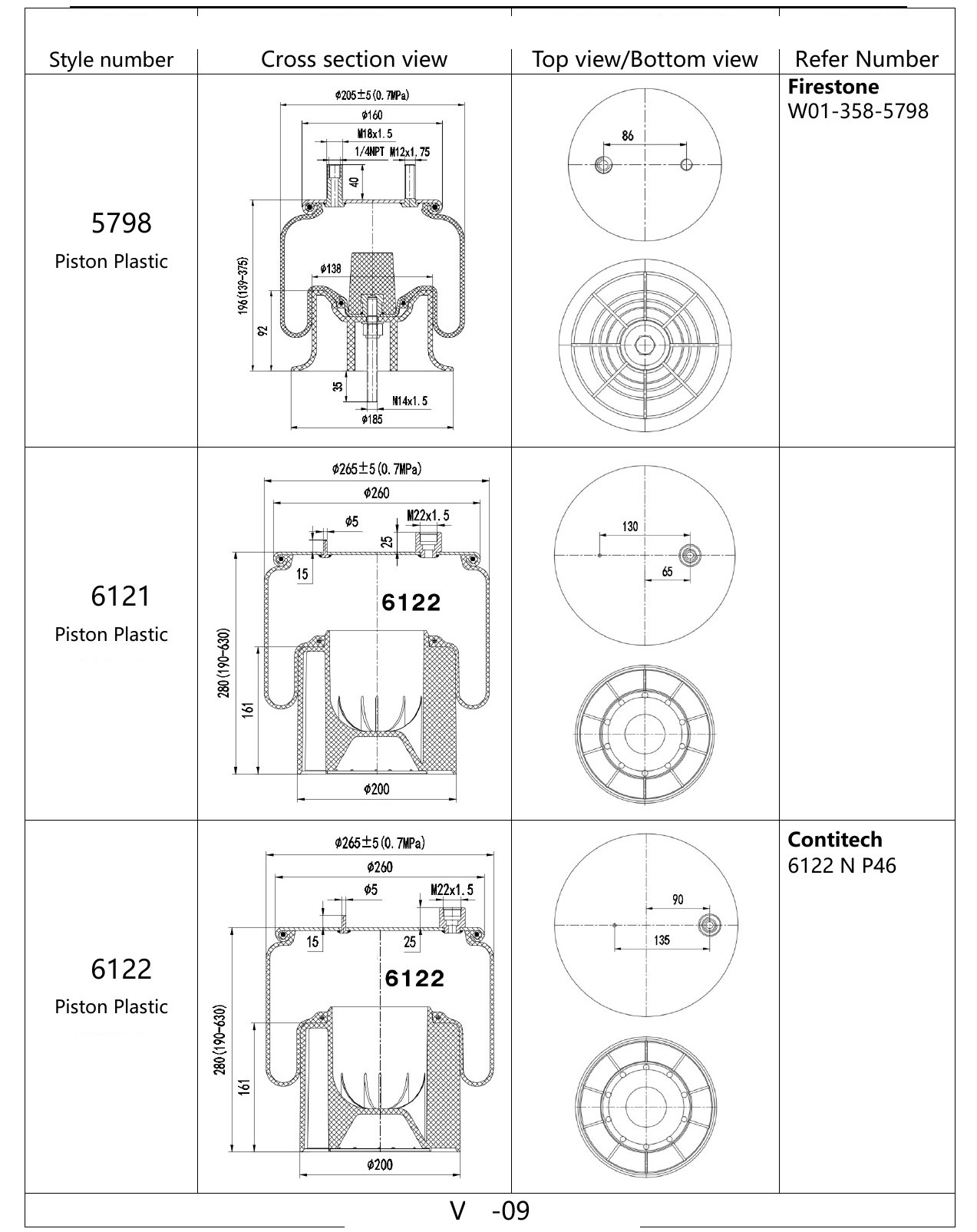

V Series - Drawing Sheet 9

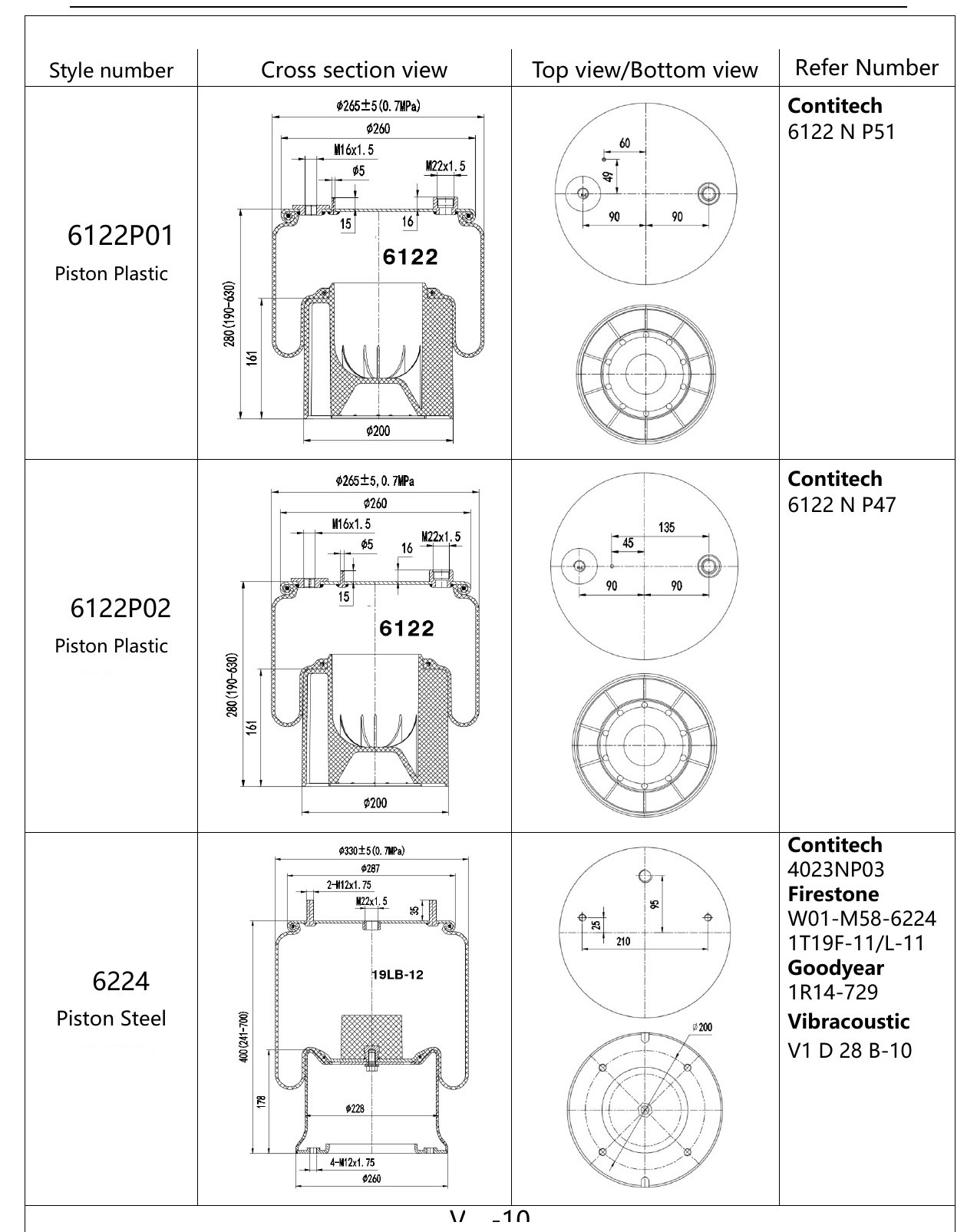

V Series - Drawing Sheet 10

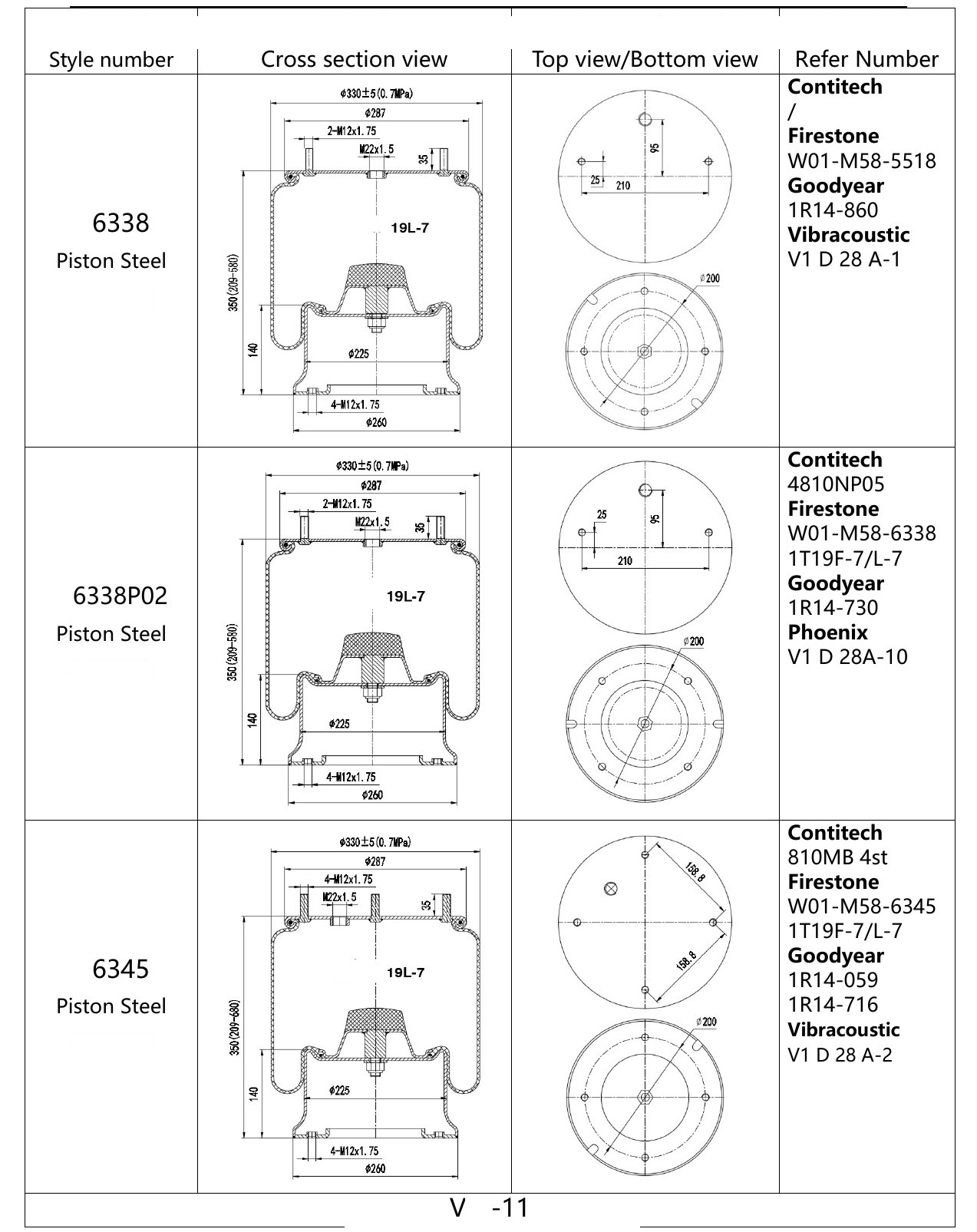

V Series - Drawing Sheet 11
V Series - Drawing Sheet 12
V Series - Drawing Sheet 13

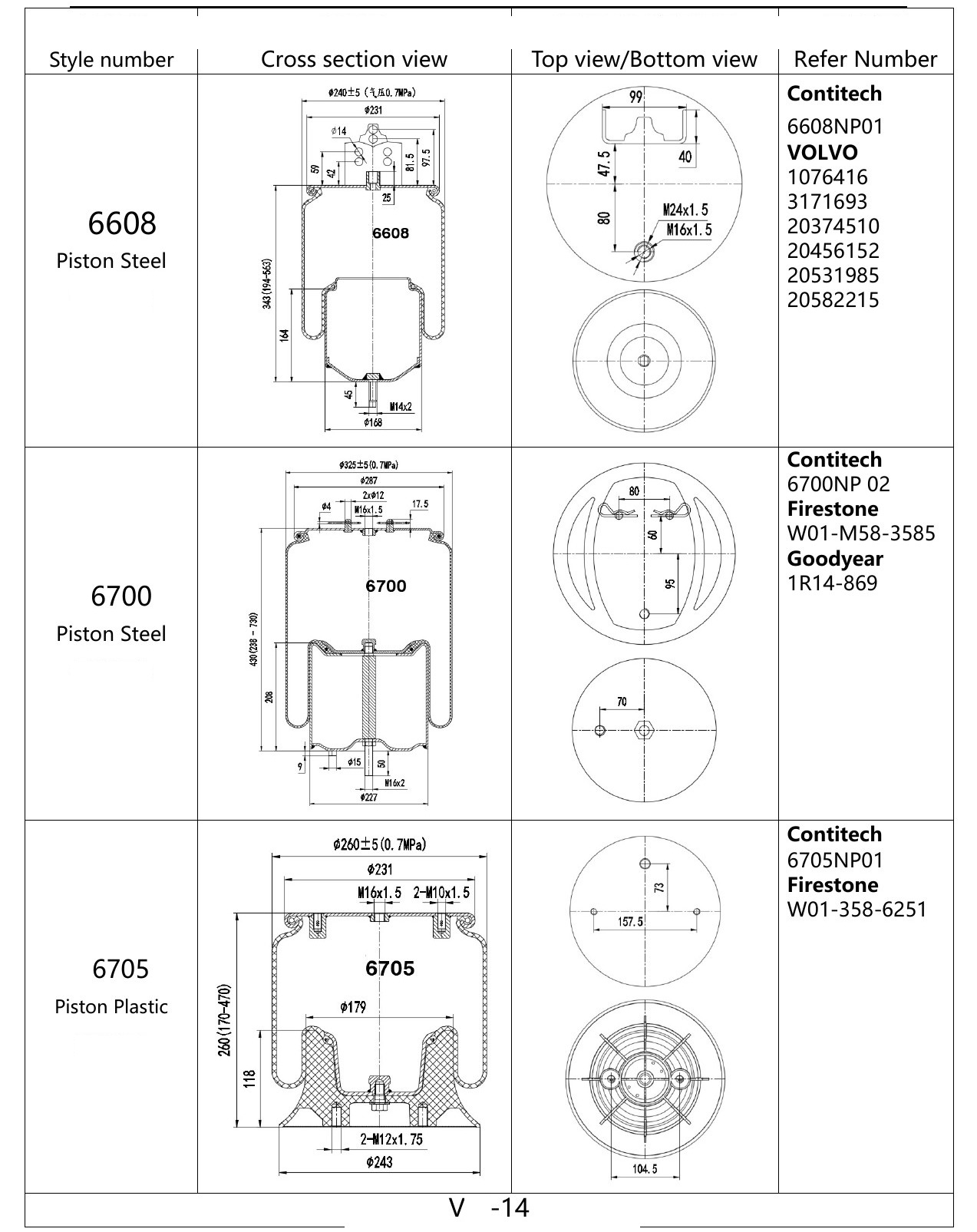

V Series - Drawing Sheet 14

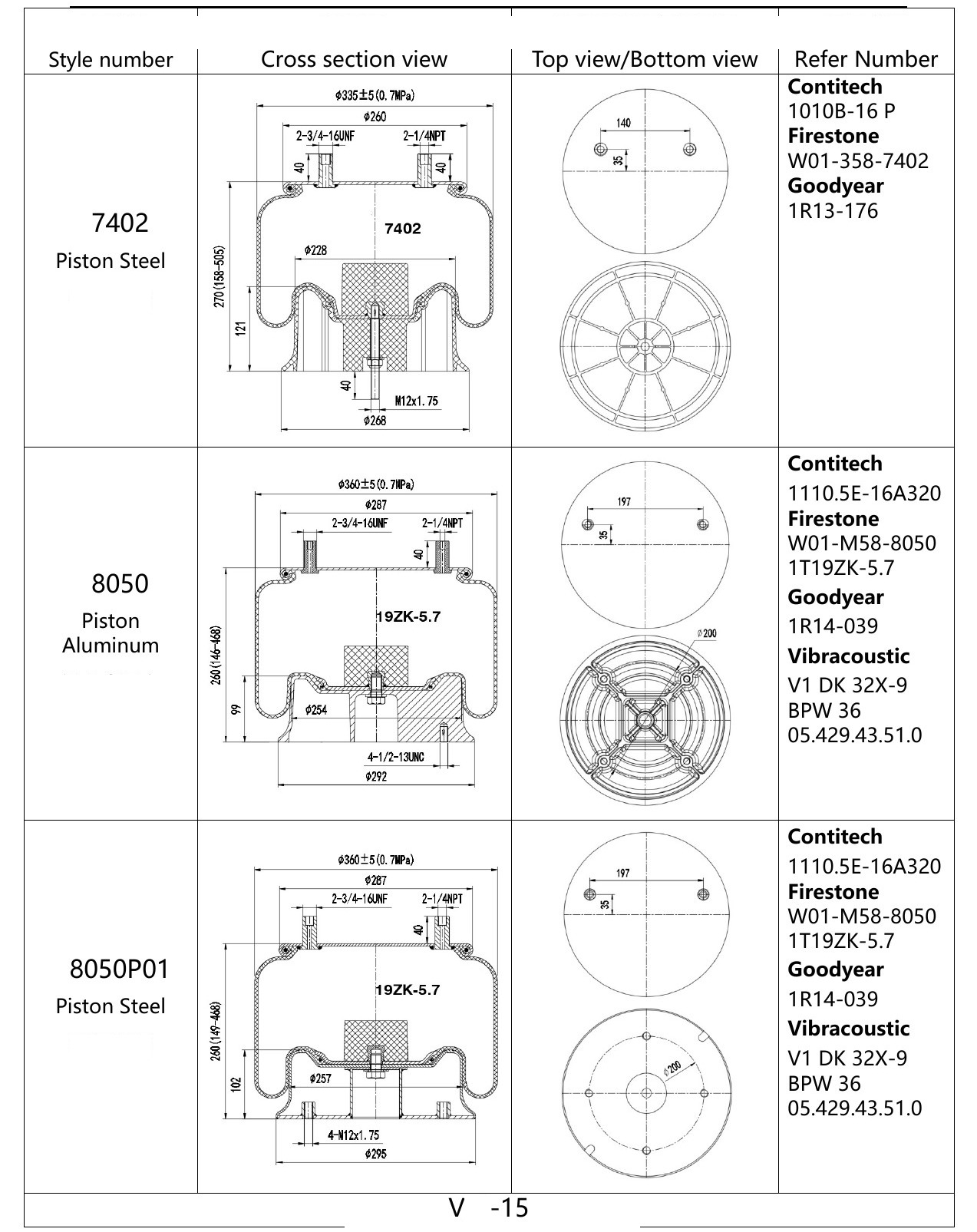

V Series - Drawing Sheet 15

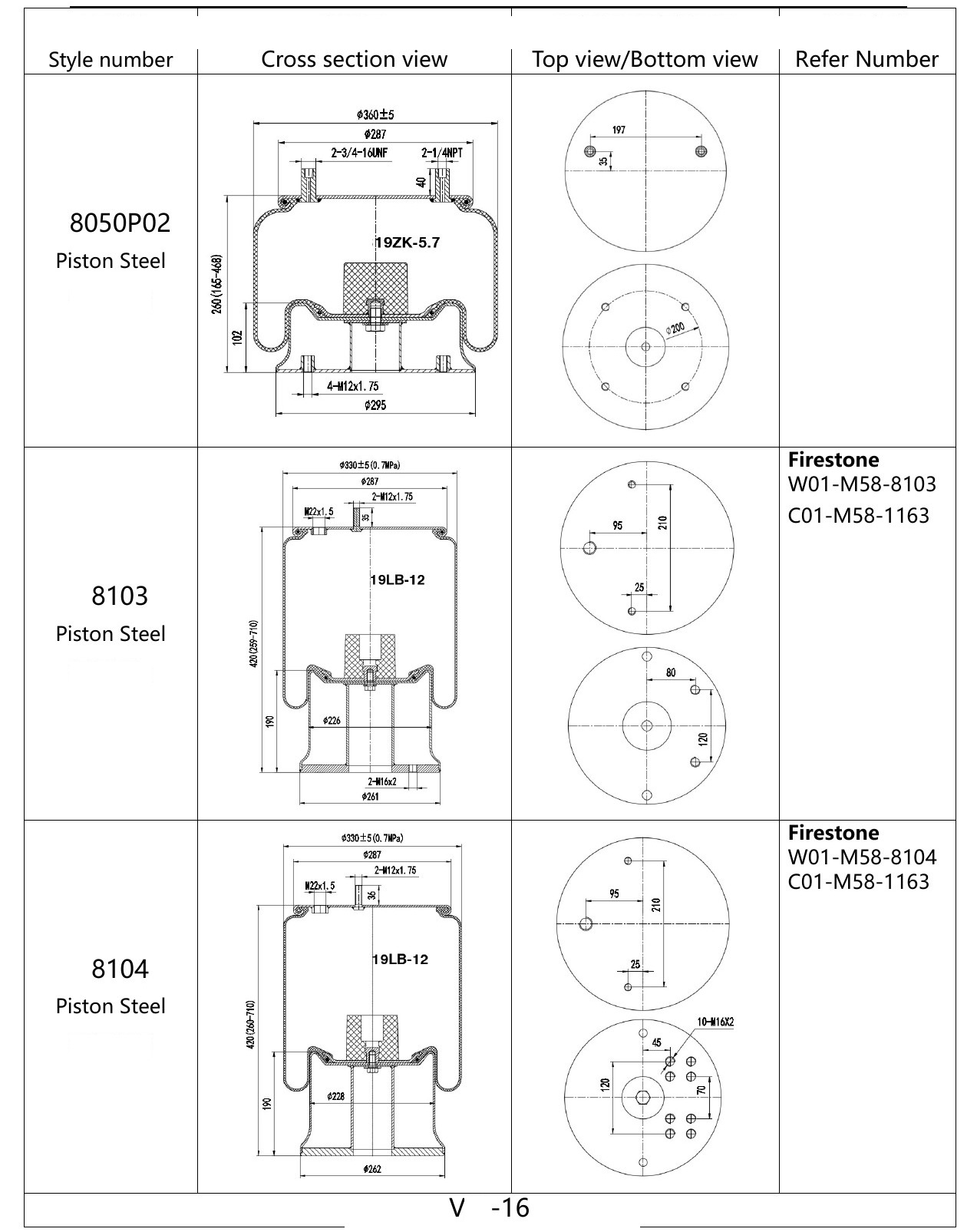

V Series - Drawing Sheet 16

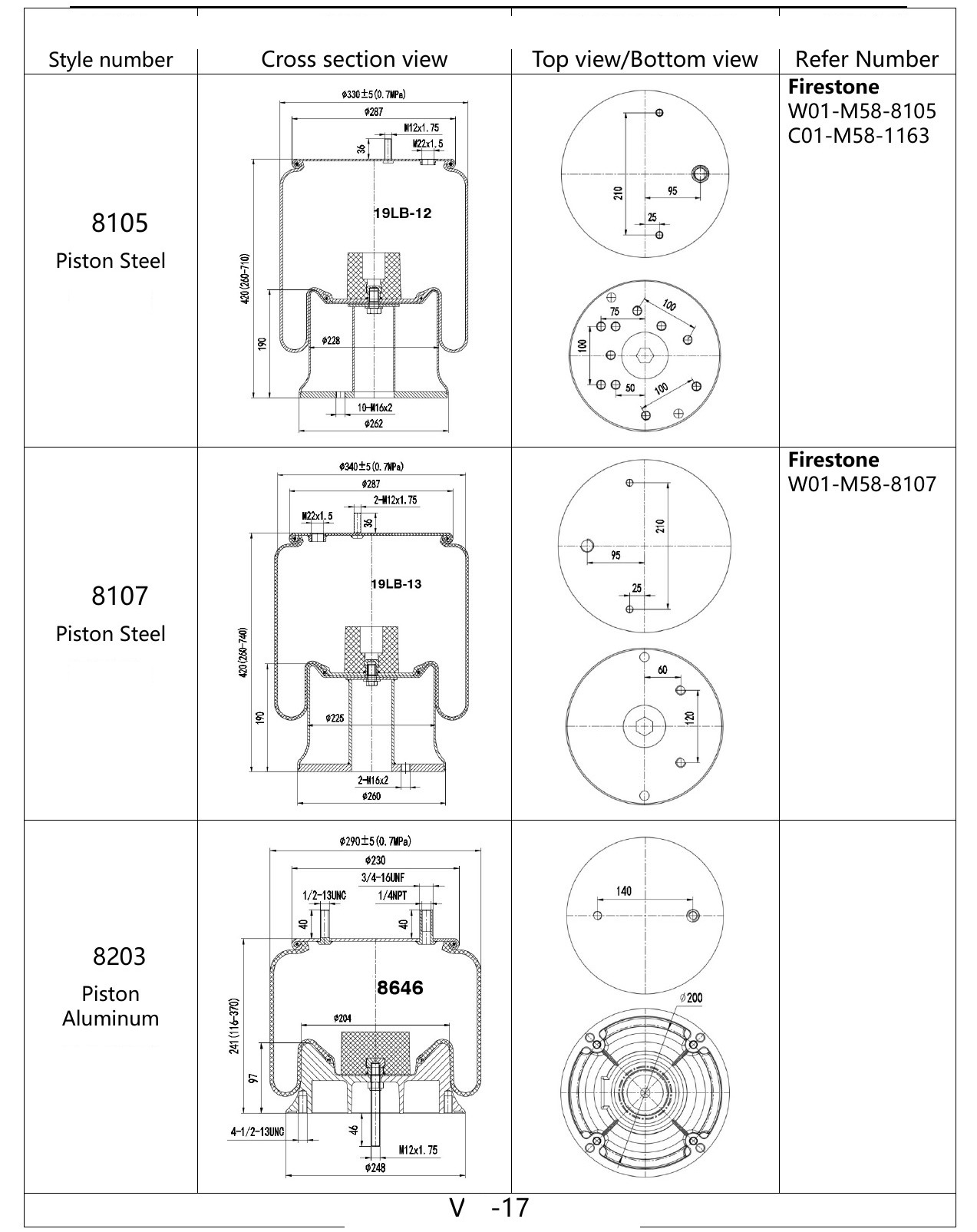

V Series - Drawing Sheet 17

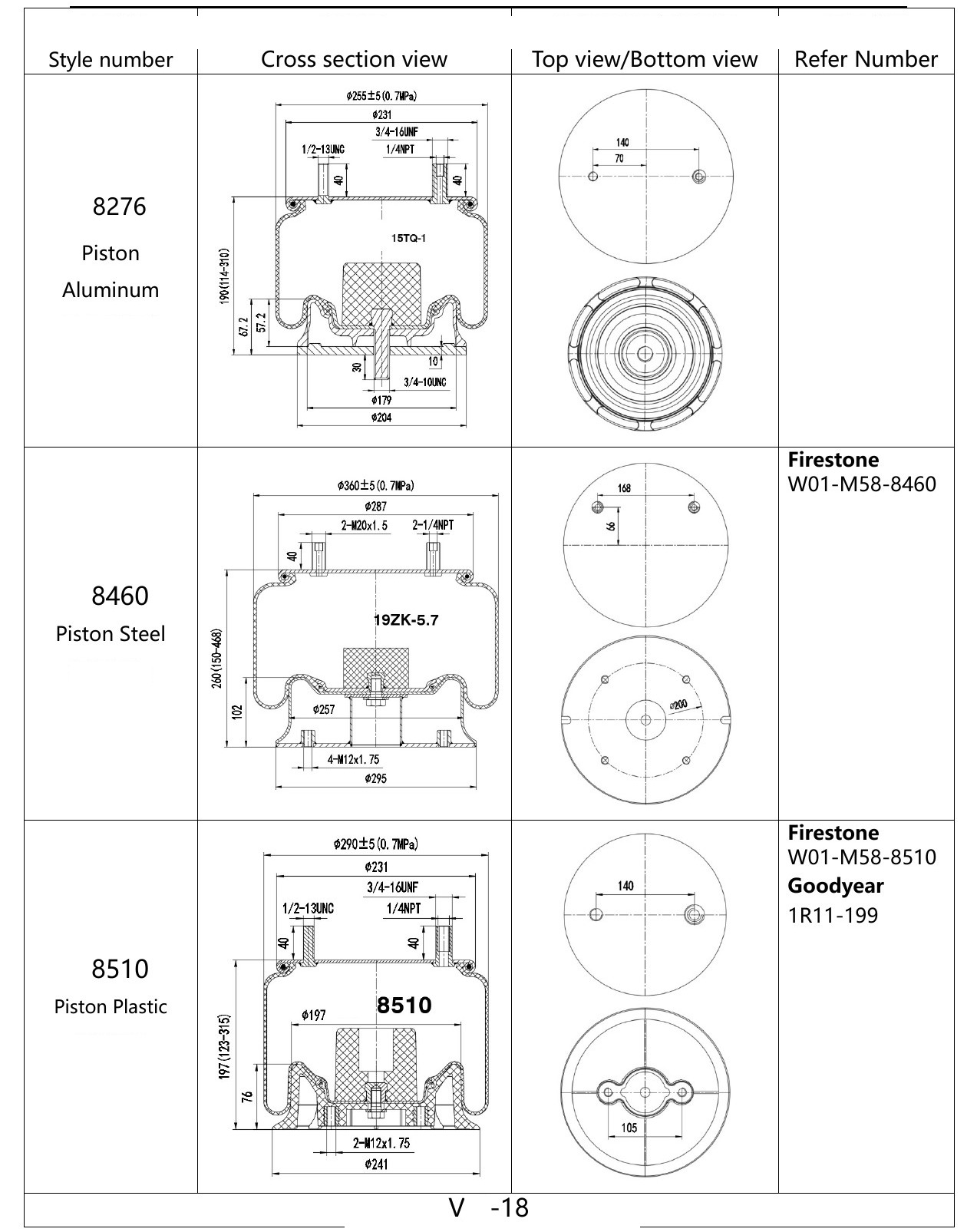

V Series - Drawing Sheet 18

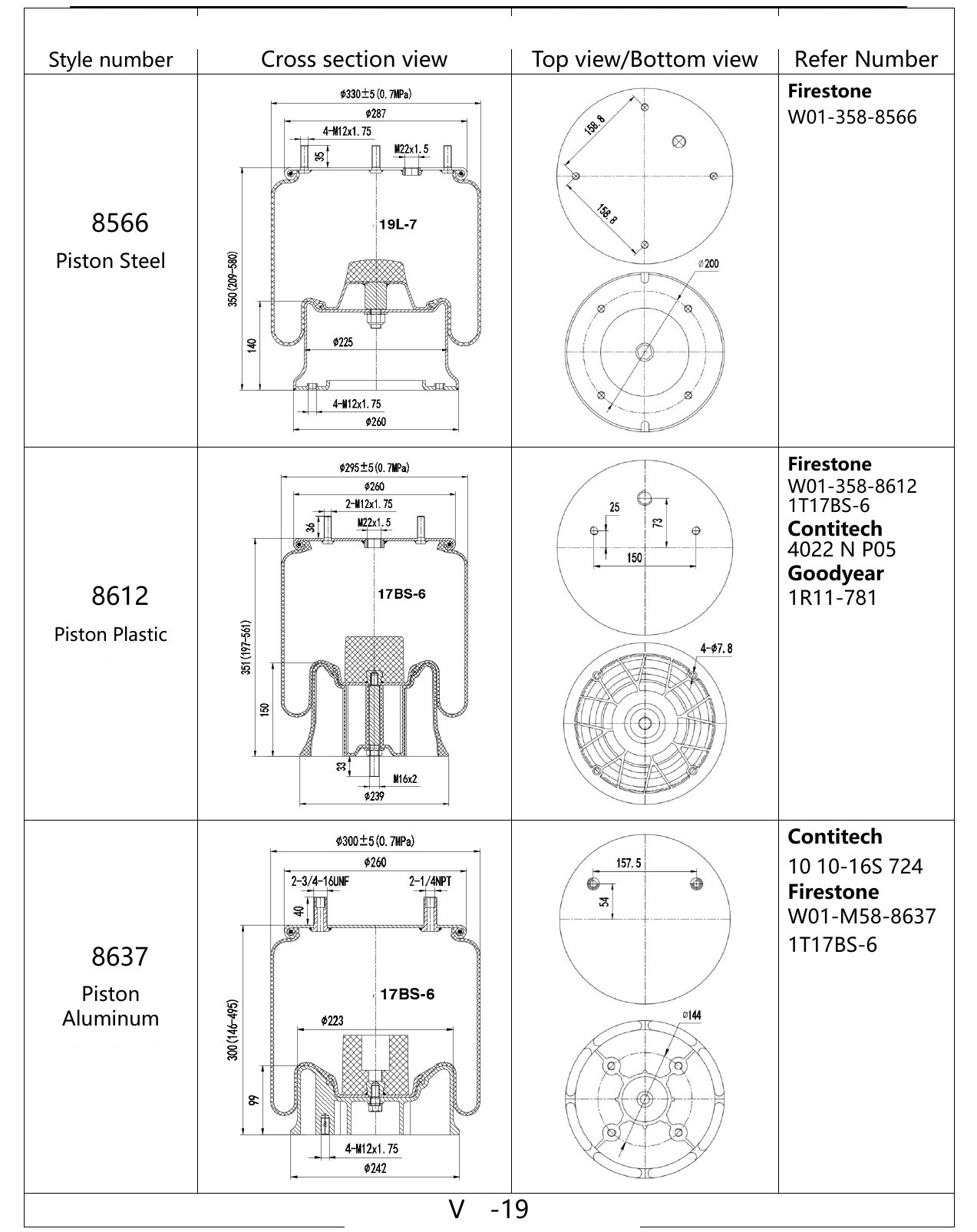

V Series - Drawing Sheet 19

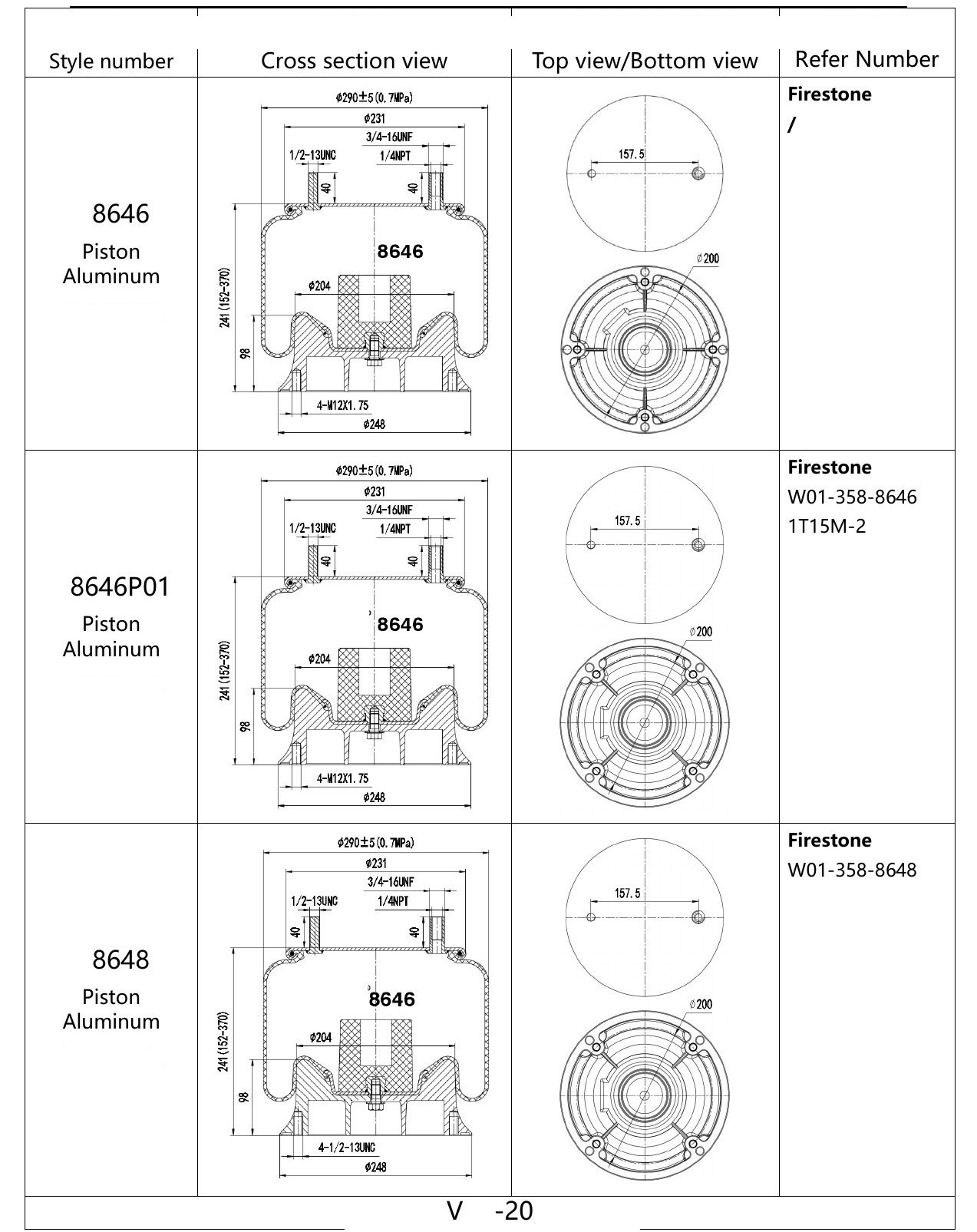

V Series - Drawing Sheet 20

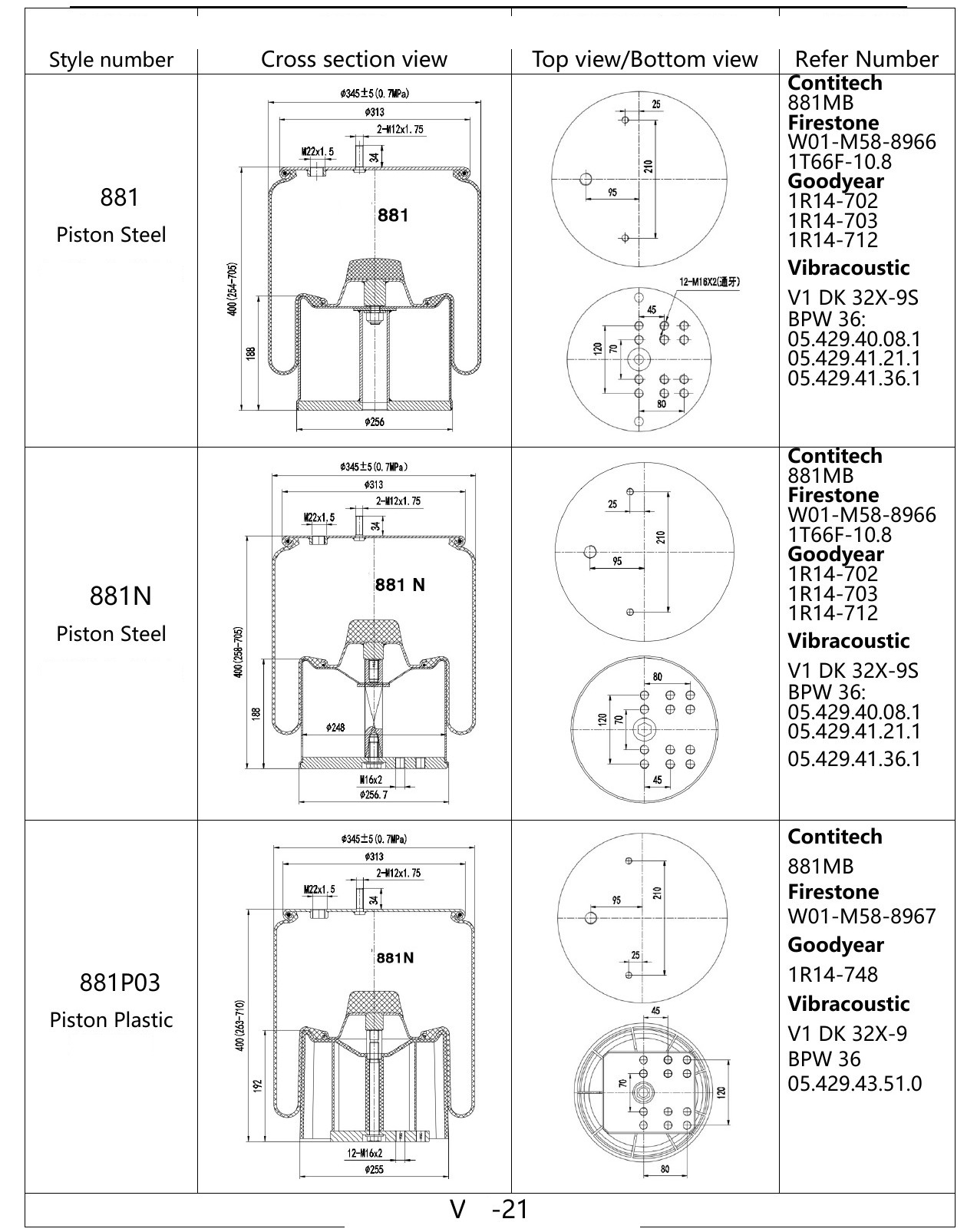

V Series - Drawing Sheet 21

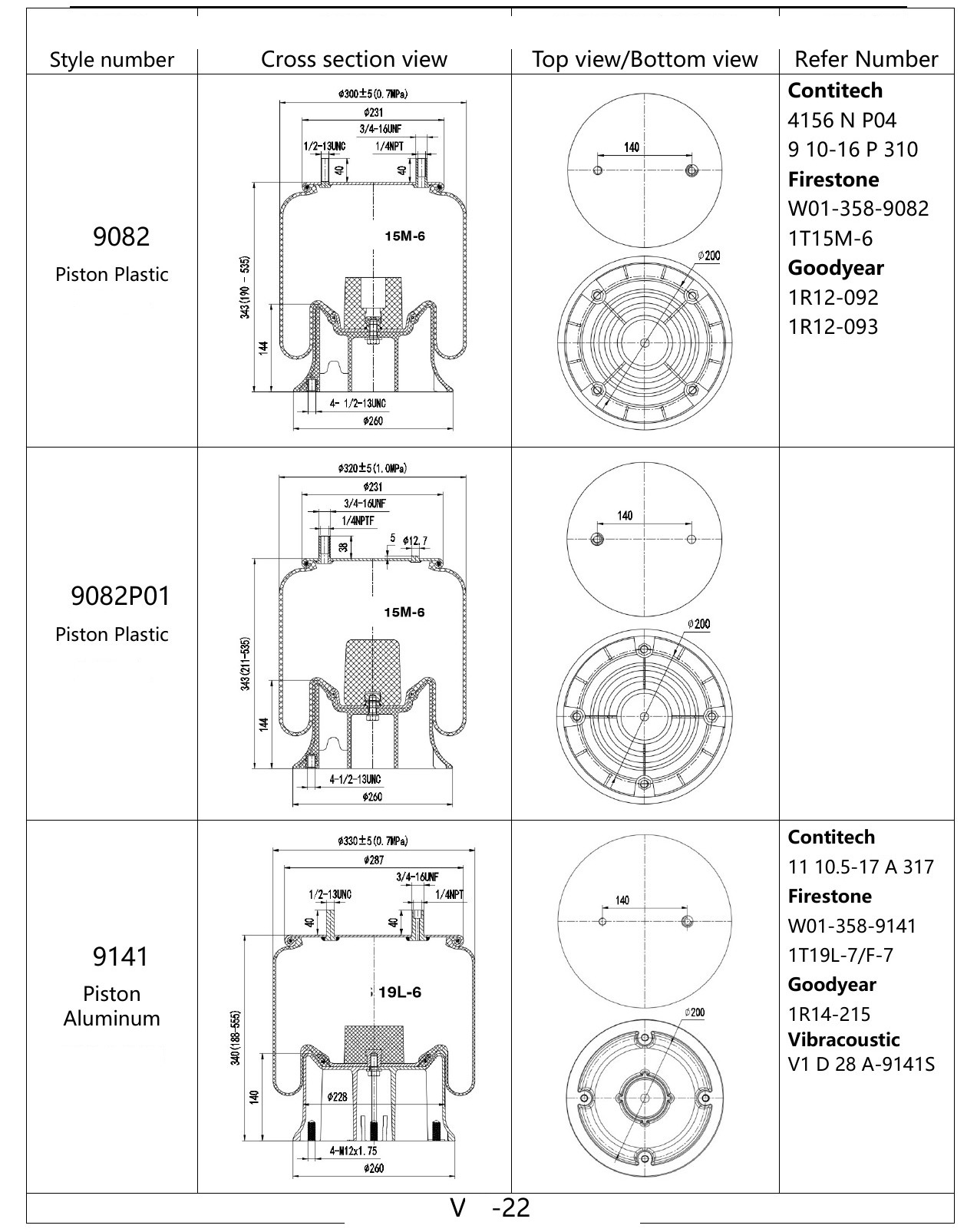

V Series - Drawing Sheet 22

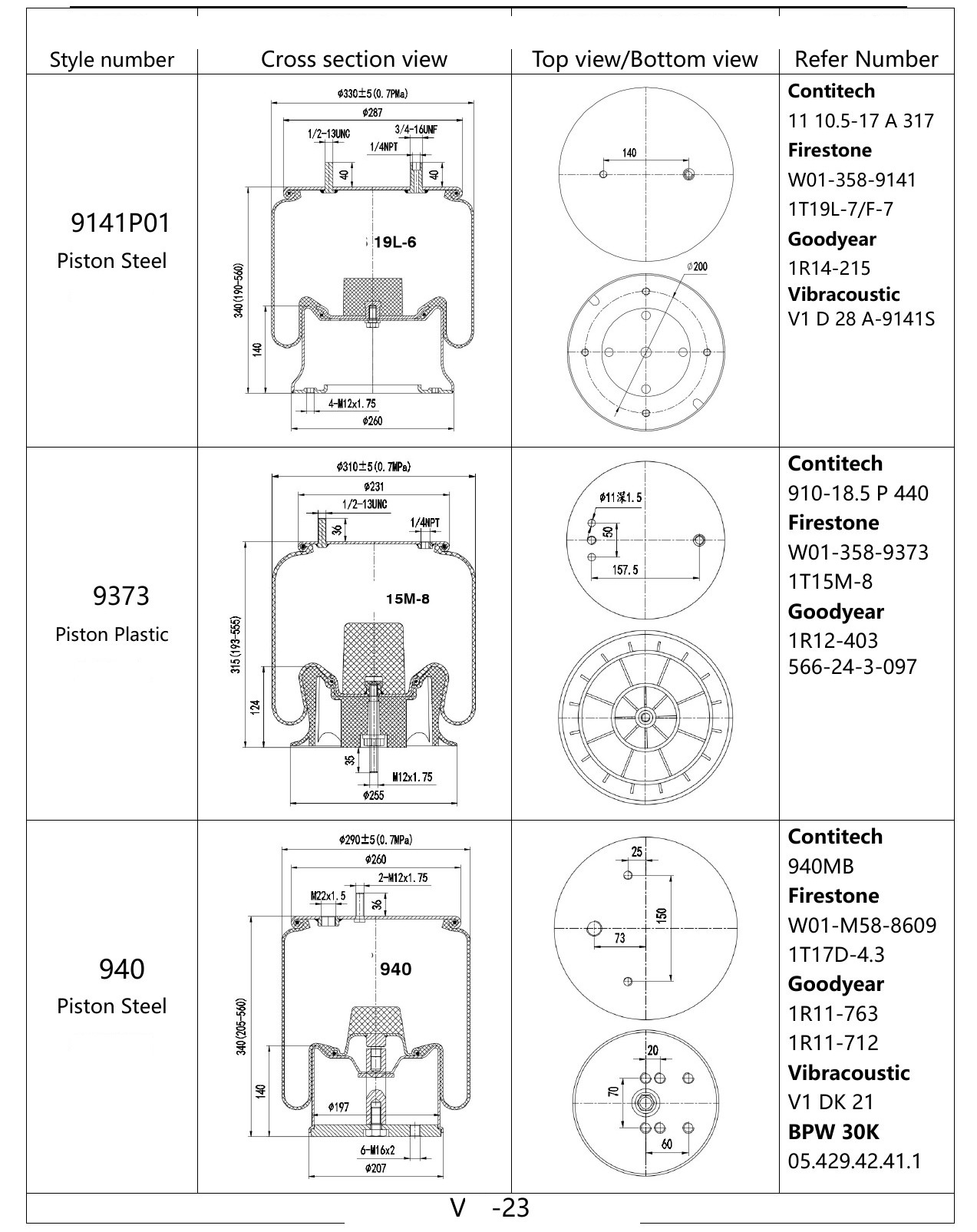

V Series - Drawing Sheet 23
V Series - Drawing Sheet 24

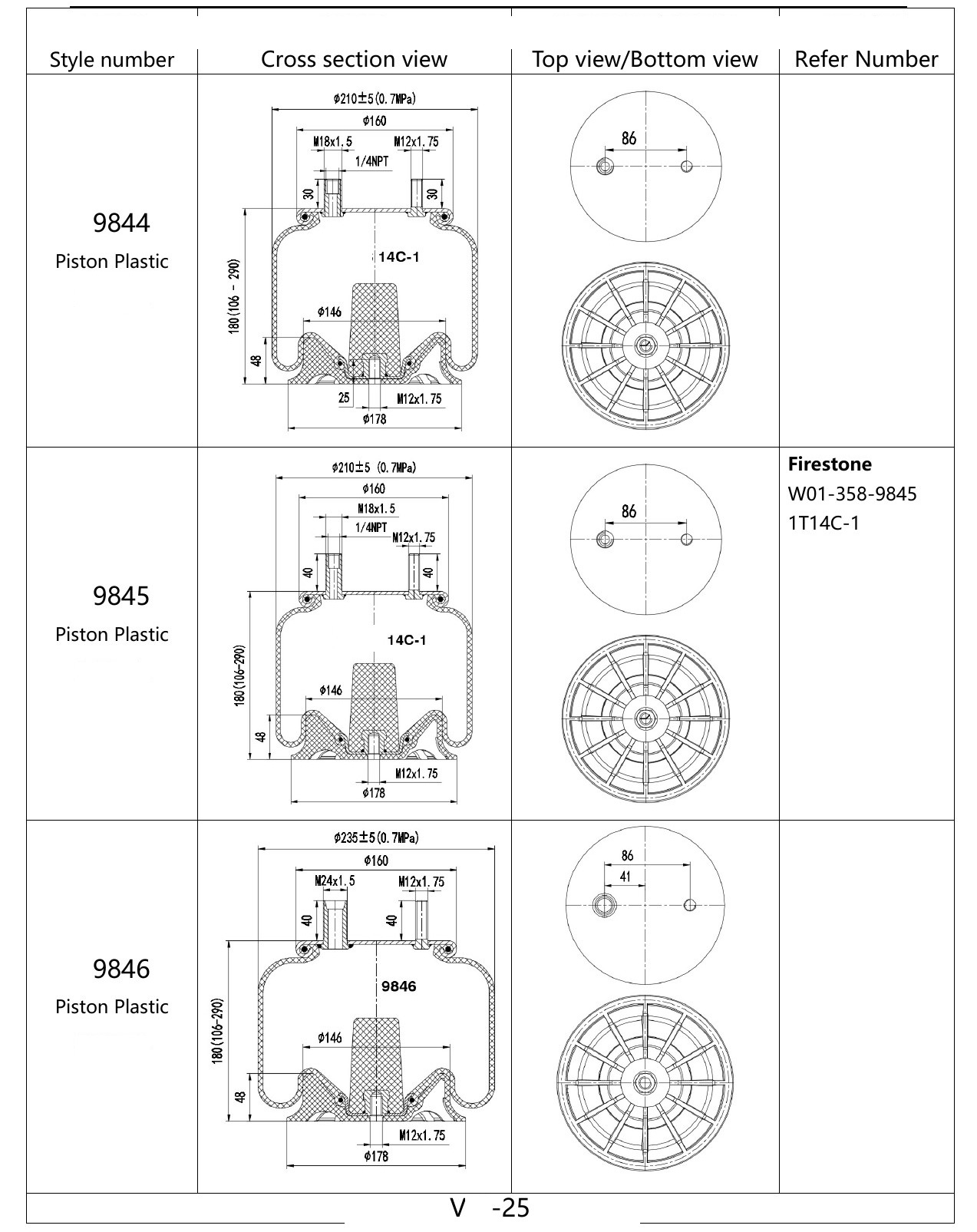

V Series - Drawing Sheet 25
V Series - Drawing Sheet 26
V Series - Drawing Sheet 27
V Series - Drawing Sheet 28
V Series - Drawing Sheet 29
